Rapid Motion NEXUS R5 Pro Cable Functional Trainer

Rapid Motion NEXUS R5 Pro Cable Functional Trainer

RMC-R5P
$5,950
$7,000 $5,950 Save 15%
Sale Sold out
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%20%3Ca%20href=%22https://gymdirect.com.au/pages/gd-rewards%22%20title=%22https://gymdirect.com.au/pages/gd-rewards%22%3ELog%20in%20or%20join%20for%20free.%3C/a%3E%3C/p%3E
100% Secure Checkout
  • Visa
  • Mastercard
  • PayPal
  • Afterpay
  • Zip
  • Humm
View full details
feature-item-1
Fast Dispatch Australia-wide*

Order today, receive 3-7 business days.

feature-item-2
Commercial & Home Gym Experts

Gym Fitouts made easy for any space.

feature-item-3
Trusted Australian Gym Supplier

Operated in Sydney for 20+ years.

feature-item-4
Flexible Finance Options

Pay with Zip, Afterpay, or Humm.

More information

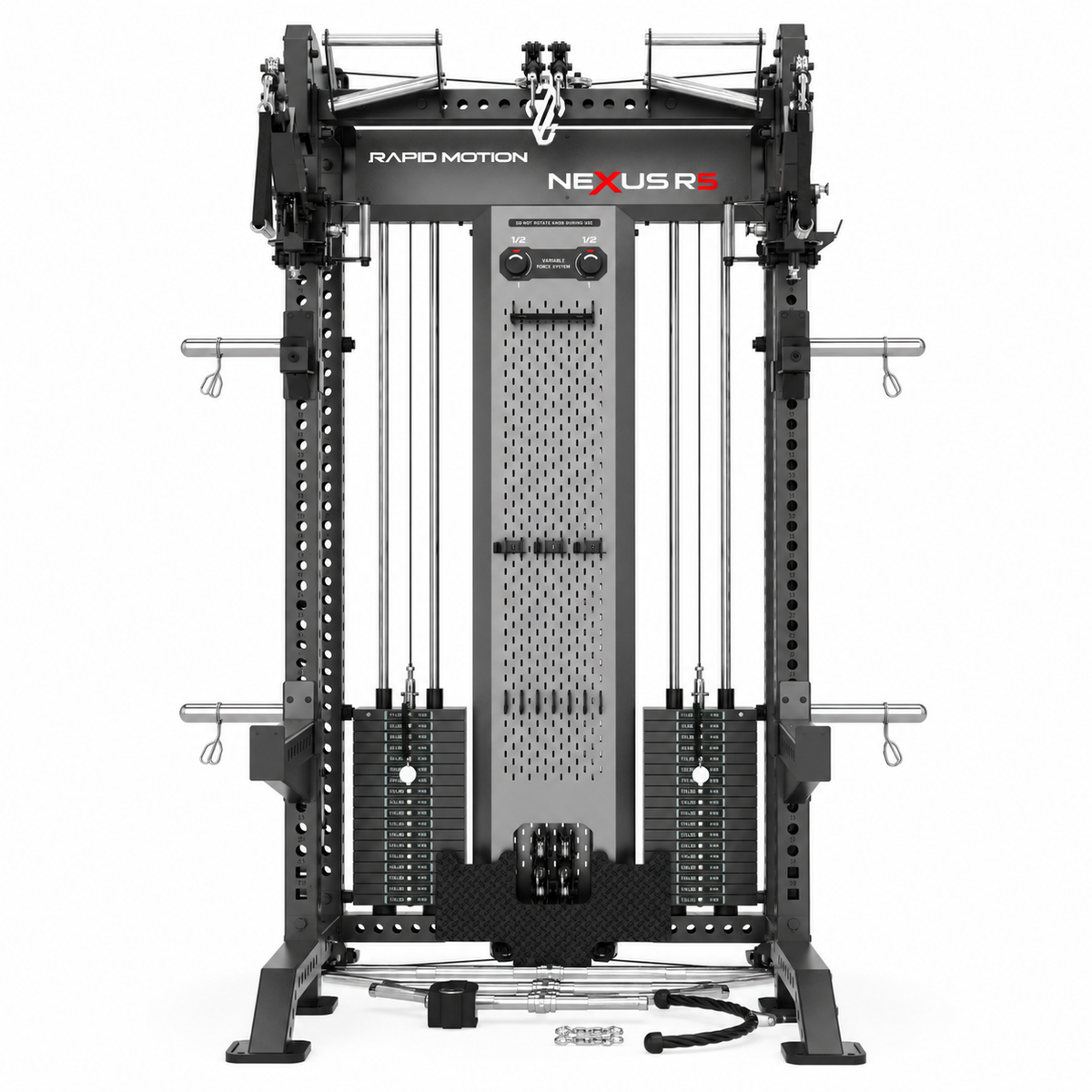

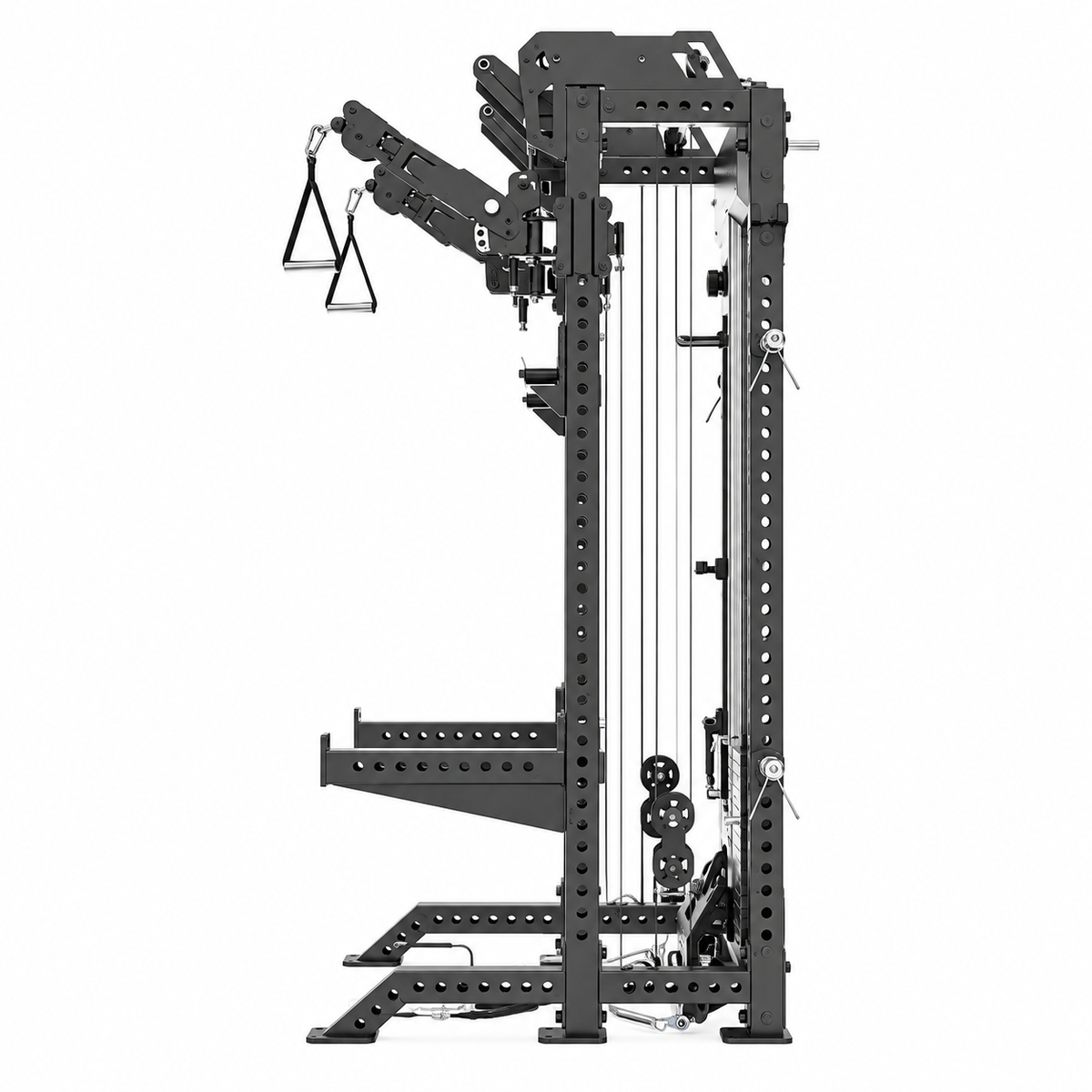

RMC R Series RMC-R5P Multi-Functional Trainer & Power Rack

The RMC R Series RMC-R5P Multi-Functional Trainer & Power Rack is a heavy-duty, all-in-one strength station designed to combine versatile cable training with the functionality of a power rack. Its integrated design supports cable exercises, barbell movements and functional strength training, making it a highly versatile solution for commercial training environments.

One of the key advantages of the RMC-RW5P is its flexible 3-way installation design. Depending on the facility layout and installation requirements, the machine can be configured as free standing, wall mounted or floor mounted. When used in the free-standing configuration, the front support feet provide additional support. For wall-mounted or floor-mounted installations, the pair of front support feet can be removed for a cleaner and more space-efficient setup.

The Variable Force System allows users to switch between 1:1 and 2:1 pulley resistance ratios. The 1:1 setting provides more direct resistance for heavier strength-focused movements, while the 2:1 setting provides lighter effective resistance and increased cable travel for controlled, functional and higher-repetition exercises.

Multi-angle adjustable swing arms further increase training versatility, with 9 levels of adjustment across a 180° range and 6 levels across a 90° range. This provides extensive cable positioning options for presses, rows, fly movements, raises, pulls, rotational movements and other functional exercises.

Two independent 90 kg weight stacks provide a total stack weight of 180 kg and up to 180 kg combined maximum output resistance. Aluminium pulleys support smooth cable travel, while the substantial 429 kg net machine weight provides a heavy-duty platform suited to demanding training environments.



  • Series: RMC R Series
  • SKU: RMC-R5P
  • Product Type: Multi-Functional Trainer & Smith Machine
  • Installation Options: Free Standing / Wall Mounted / Floor Mounted
  • Front Support Feet: Removable for Wall-Mounted or Floor-Mounted Installation
  • Weight Stack: 2 × 90 kg
  • Total Weight Stack: 180 kg
  • Maximum Output Resistance: 180 kg
  • Resistance Ratio: 1:1 / 2:1 Selectable
  • Resistance System: Variable Force System
  • Horizontal Swing Arm Adjustment: 9 Levels
  • Horizontal Adjustment Range: 180°
  • Vertical Swing Arm Adjustment: 6 Levels
  • Vertical Adjustment Range: 90°
  • Pulley Material: Aluminium
  • Net Weight: 429 kg
  • Gross Weight: 489 kg
